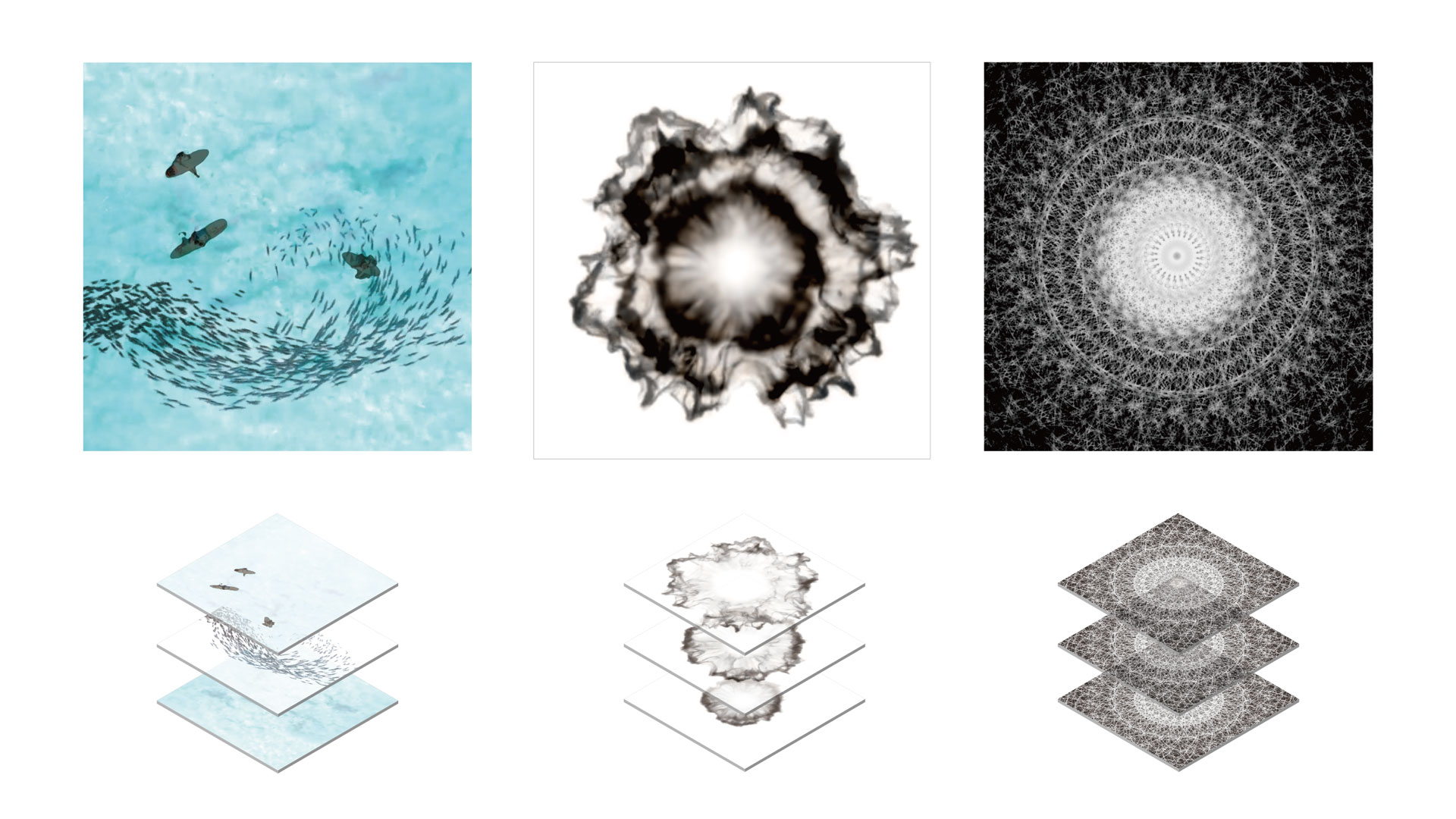

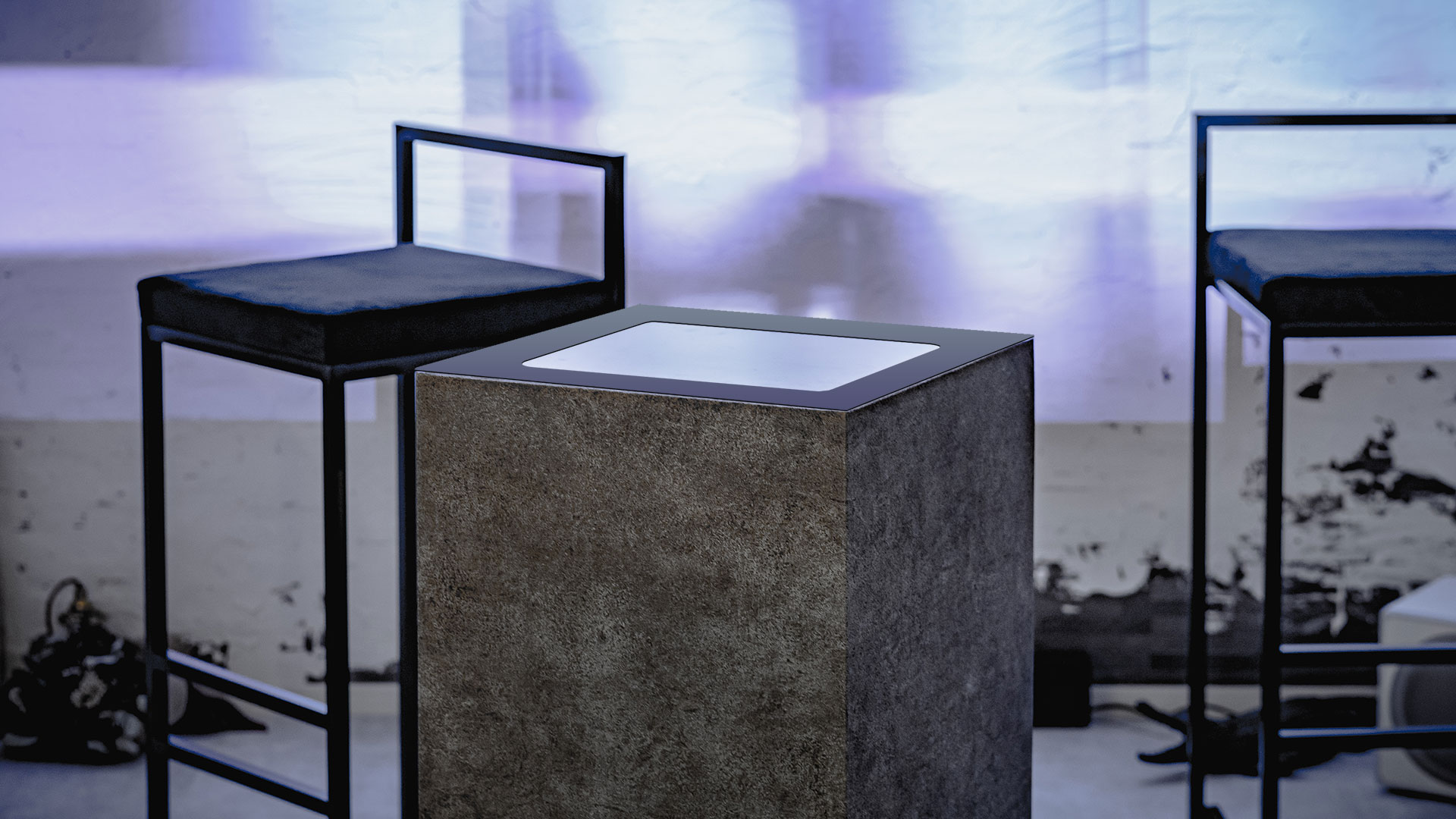

本作品は、複数枚の透過ディスプレイを利用した、立体的なレイヤー表現が可能な映像投影デバイスである。2D 映像に物理的な奥行き方向を付加することで、視点・時間等の情報が付加され、鑑賞者はその映像に物性を見出す。

It is a video projection device that can express three-dimensional layers using multiple transmissive displays. By adding a physical depth direction to a 2D image, information such as viewpoint and time is added, and the viewer finds physical properties in the image.

house_1920x1080Zi_02_moviesampledisney

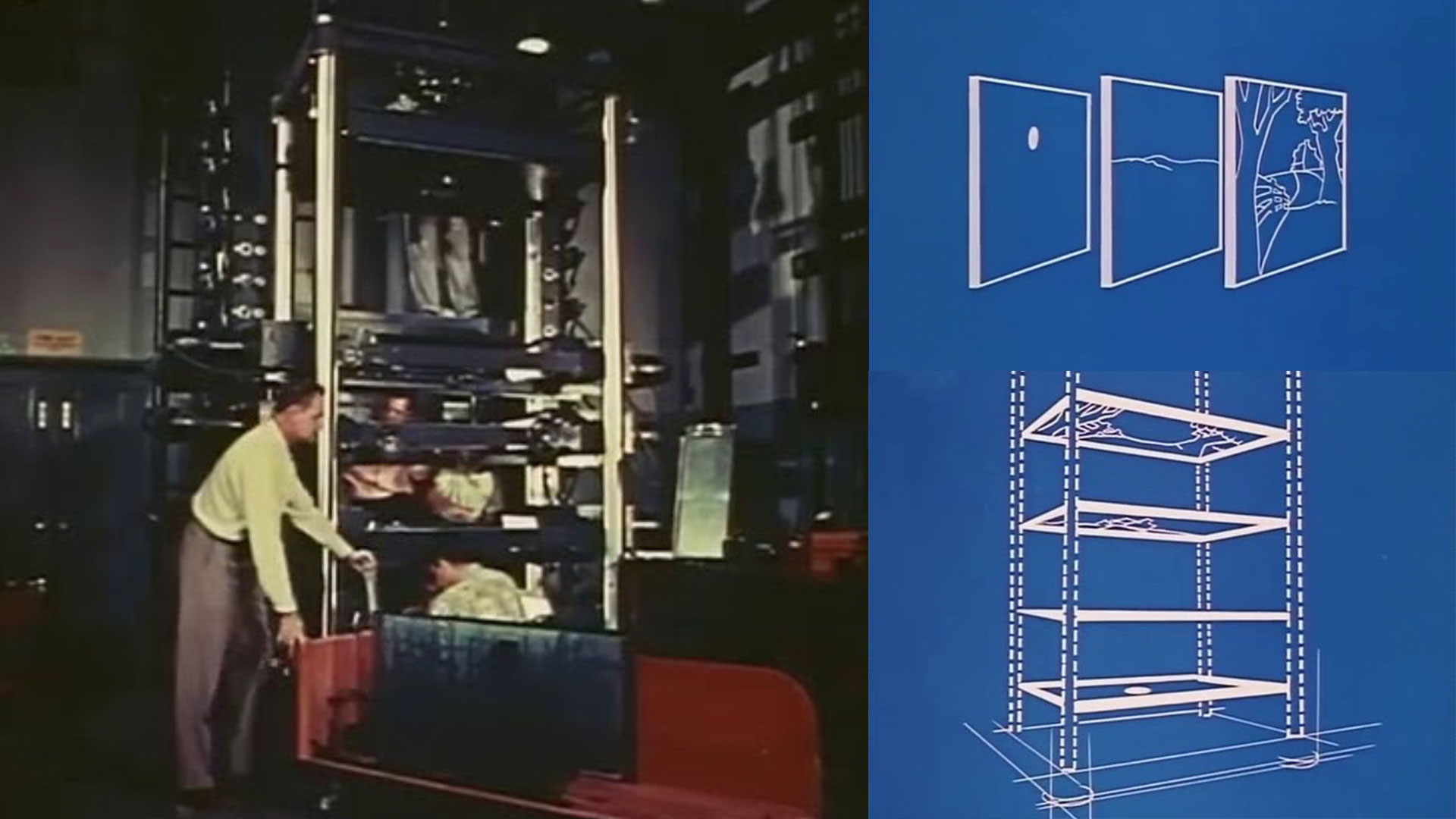

制作の背景としては、1933 年にウォルト・ディズニー・カンパニーのアブ・アイワークスが発明した“マルチプレーン・カメラ” から着想を得た事から始まった。“マルチプレーン・カメラ” とは、実際には立体ではない絵に、3 次元的な奥行を表現する映画撮影用のカメラである。我々はこの手法を応用し、映像の新しい表現を生み出す事を考えた。

The background of the production started from being inspired by the "multiplane camera" invented by The Walt Disney Company's Ub Iwerks in 1933. A "multiplane camera" is a camera for filming that expresses a three-dimensional depth in a picture that is not actually three-dimensional. We considered applying this method to create a new expression of video.

rend_diamond_.165_1920x1080rend_diamond.159rend_diamond.161

【活用例】 そこにあるモノが、どのようなバックグラウンドを持ってそこに存在しているのかを“土台”として表現することができる。例えばダイヤなら原石からここに至るまで過程、日本酒なら仕込水に使われた源流の綺麗なせせらぎ、といったストーリーを、2次元を超えた表現によりそのモノの見せ方の拡張を行う。

【Example of use】 [Ziː] can express as a “base” what kind of background the object has. For example, the process from the rough stone to the process here for diamonds, and the beautiful murmur of the source stream used for brewing water for japanese sake, it expands the way of showing of objects by the noble expression beyond two dimensions.

第一号機の制作は一ヶ月という短い期間で完了した。ディスプレイ部品は市販のPCモニターを分解して使用し、投影ユニットを構築した。

In the making of the first product, we completed in a short period of one month.We disassembled general PC monitors to single component of displays and compose organized unit and so on.

TN_04949_r
TN_04951_r
TN_04950_r
TN_04952_r
